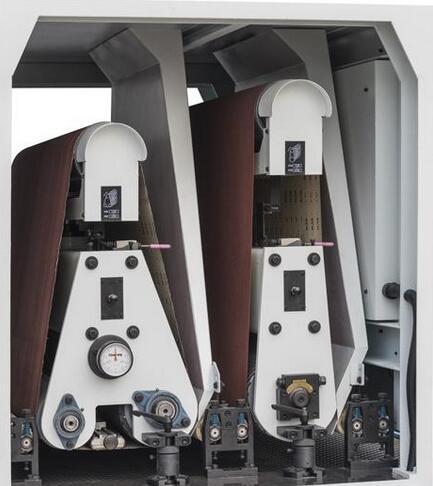

Sanding Units 1st sanding unit with diameter 240mm steel sanding roller complete with: sanding belt tension unit; electronic oscillation; dust hood; safety systems. Sanding roller with helicoidal grooves for cooling. Motor with one speed of rotation. 2nd sanding unit structure be same as 1st ,except rubber hardness be difference(shore70);
3rd sanding unit is a combination of rubber roller and pad, with alloy rack, felt, graphite cloth complete with sanding belt tension unit; electronic oscillation; dust hood; safety systems. Rubber roller is diameter 210mm and hardness 55 shore. Sanding pad can be adjusted up and down easily. (Air pad is available)

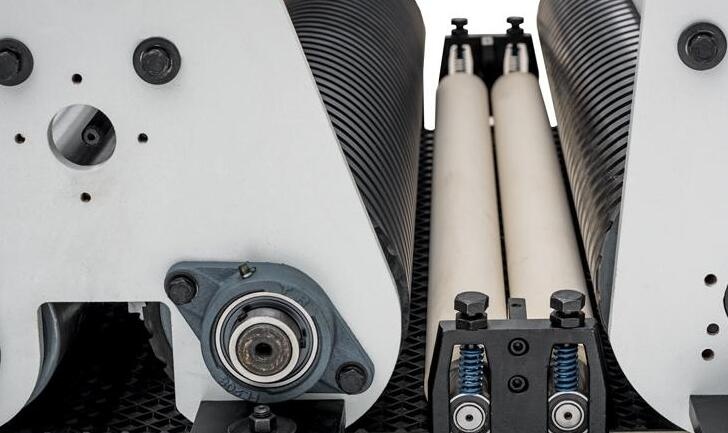

Machine manufacture meet CE regulations of European general machine directive. Pressure units Pressure units to hold the work pieces on the conveyor belt; are positioned in front and rear of each working unit; The press rollers with springs to compensate panel thickness difference. Feed system Feed table is steel with tolerance of planarity within 0.05mm; table surface fine grind to avoid wear of the internal side of the feed belt.. Conveyor belt with surface in rubber at appropriate hardness; top profile according to operation requirement. Drive unit with motor and converter, feed speed variable in continuous from 0m/min to 19m/min. Feed table extension in machine front side with steel idle rollers.

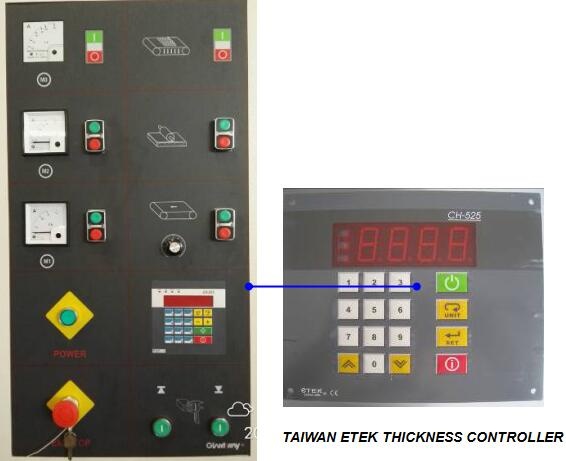

Electric compoents in the front of machine, includes a main switch, PLC, contactor, breaker ,all be built on standard CE rules.
|
