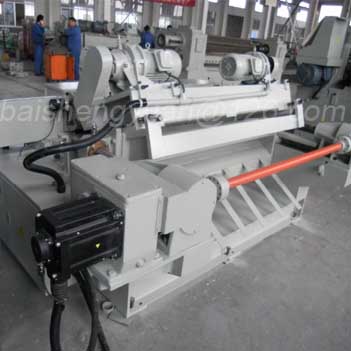

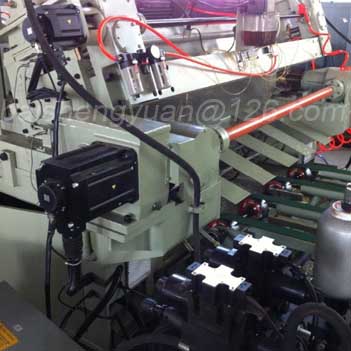

Product name : 4ft Spindless Rotary Lathe
Item : BQK1813F
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

 4' (5') CNC NON-CHUCK SPINDLESS ROTARY LATHE ,
Peeling log length 1350mm
SL1350/4
Total Motor power installed 20.6kw
Roller driven by gear boxes.
Working log diameter 40-360mm
Have hydraulic system, peeling veneer speed 42m/min.
Weight 7 ton



SL1350/3

Total Motor power installed 21.7kw

Roller driven by gear boxes.

Working log diameter 40-360mm

Have hydraulic system, peeling veneer speed 42m/min.
(60M/MIN AS OPTIONAL,
Servo motor increased to 11kw,Double roller unit add one one driven motor,new gears trasmission scale)

Weight 7.5ton


BQK1813F

Total Motor power installed 16.5kw

Roller driven by chains,other two molds by gear boxes.

Working log diameter 40-360mm,  peeling veneer speed 32m/min.

BQK1813F without hydraulic system,others have hydraulic system.

Weight 5.5ton
