Shandong Baishengyuan Group Co.,Ltd.

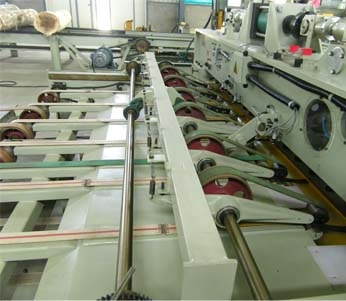

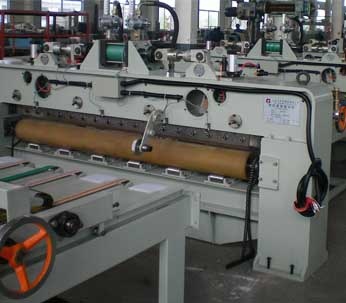

Product name : Pneumatic Clipper
Item : BJ1326A
 Enlarge Image                   Back



Details:


Pneumatic Clipper Machine Model

BJ1326A

BJ1320

Max. working width

2650

2100

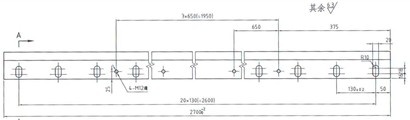

Veneer shearing Knife blade length

2700mm

2150

Standard knife blade quantity

1pc

1pc

Anvil diameter

398mm

398mm

Max. sheering linear velosity

100m/min

100m/min

Feed speed (m/min)

6-60m/min

6-60m/min

Compress air working pressure

0.2-0.3mpa

0.2-0.3mpa

Veneer shearing motor power

4kw

3kw

Overall dimension

3700×3020×1580

3110×3020×1580

Weight

3800

2600kg



Advantage:
Ability to customize;
Spare items in stock;
Shorter lead time;
Own a factory;
