Product name : CNC Double Spindles Rotary Lathe BQK1626/8
Item : BQK1626/8
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

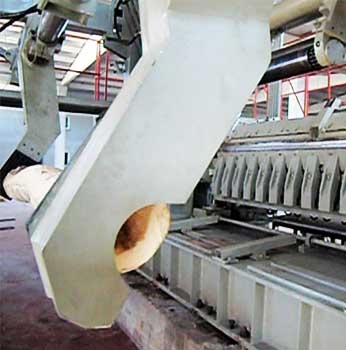

BQK1626/8 with a motor driven anti-bending roller system,be freely adjust,instead of traditional systems.
this characteristic ensures high level,be advantage in international market.

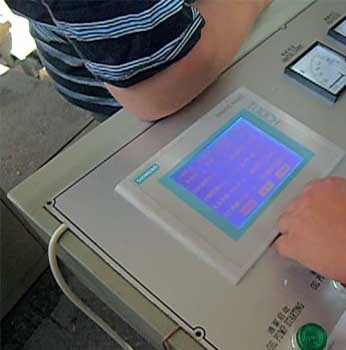

SIEMEN electrical system be adopted. BQK1620/8,BQK1613/8 MITSUBISHI system be normal.

Shandong Baishengyuan company making various double spindles rotary lathe models, allow the operation with a wide range of log lengths and diameters, ensuring the correct machine to each valuable wood log.

Shandong Baishengyuan company machines automation level and machine features are designed according to customer requirements.

Double Spindles Rotary Lathe Model

BQK1626/8

BQK1620/8

BQK1613/8

Rotary peeling log diameter(mm)

90 - 800

90 - 800

90 - 800

Rotary peeling log length(mm)

2150-2700

1600-2100

900-1450

Veneer thickness(mm)

0.3-4.2

0.3-3.5

0.3-4.2

Diameter of spindle (mm)

Φ 80(inner);

Φ 160(outter)

Φ 80(inner);

Φ 160(outter,130mm optional)

Φ 70(inner);

Φ 160(outter,130mm optional)

Spindle rotation speed (rpm)

0-400

0-160

0-160

Main motor power(kw)

160(DC)

75

55

Knife carriage driven servo motor

11kw

7.5kw

7.5kw

Knife  gap servo motor (w)

3.7

3.7

3.7

Rear angle adjust motor(kw)

1.5

1.5

1.5

Hydraulic oil pump power(kw)

22kw,15kw,11kw

15kw

15kw

Machine weight

30ton

19ton

17ton

Dimension size (mm)

9160×4800×2600

8560×3570×2600

8150×3570×2600


Following us on Facebook   www.facebook.com/baishengyuan

Machines Europe CE Certification Available.
