Product name : Multi-Opening Hot Press Machine
Item : BY214X8/6-15
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

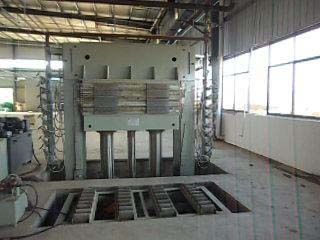

Hot Press Modle BY214x8/6-15
Nominal pressure(KN): 6000 (500-1000 ton available)
Hot-press plate sizes(mm): 2700x1370x42 (thickness 52mm optional,if increase higher working pressure)
Opening have 70,100mm between two platens,or custom made.
Press platen number 16
Diameter of plunger case(mm): 2pc,dia 360; 1pc dia 200
Working stroke of plunge(mm): 1050
Working pressure(MPa): 25
Motor pressure(kw): 26
Closing speed(m/min): 4
Overall dimensions(mm): 5000x1446x5395
Weight(kg): 35000

---Suitable produce Plywood,Shuttering plywood,Film face panel boards.
---The stainless steel sheet or cushion pad according production choice.
---Press machine's loading and unlading system available.

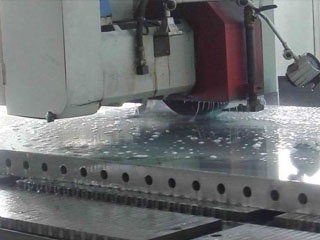

---Solid steel press platens,under ganry grinding,gantry milling process.

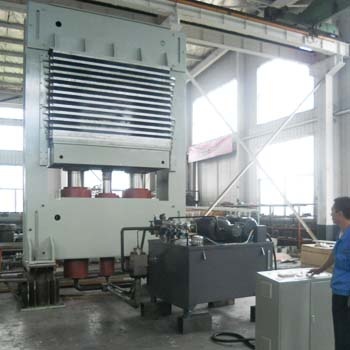

Hot Press Mahcine BY214×8/8-15

Max working pressure 8000kN

Working  platens number 16

Working pressure 26.3kgf/cm2

Press platen dimension size 700×1370×52mm

Daylight opening height 70mm

Hydraulic oil cylinders 6pc-dia 240mm and 2pcs-dia 150mm

Heating medium use thermal oil or steam

Installed motor power 15.75kW

Platen close and opening speed 50mm/s

Dimension size 5700×1370×6180mm


--------Number of dalight/openings from 2 to 20.
----------CNC machines parts and quality solid steel frame welding.
-----------More platen sizes on request,solid steel drillling,gantry milling process.

-----------Cylinder stroke depends on daylight number.
-----------Loading conveyor and accessory parts as optional.

  •
  •
  •
