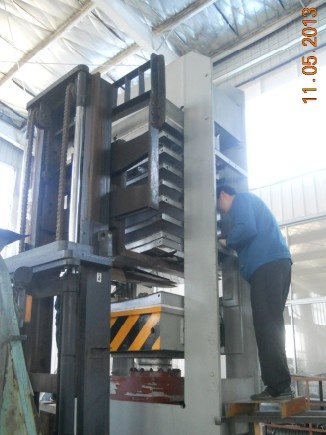

Product name : Radius Multi-opening Press Machines
Item : BY20x9/3-10
 Enlarge Image                   Back
             [Next Product]→


Details:

Press Machine BY20x9/3-10 working radius be tailor make ( Radius 4000mm,8000mm,etc  ),platen size customize;
maninly used in multi-layers panel bending,solid wood bending.

Maximum Pressure  300 ton (500ton)

Radius solid steel platen thickness 50mm

Quantity and Diameter of oil Cylinder   2×φ280mm

Work stroke of oil cylinder maximum  1200mm

Opening Number/Working Layers  10

Opening daylight distance   120mm

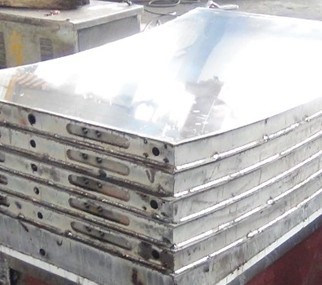

Radius bending hot platen size  2000×900mm

Radius of bending hot platen  8000mm

Hydraulic system max pressure  25.0Mpa

Installed motor power  16.5KW

Heating way could steam-heated or thermal oil boiler

Radius platen surface equip stainless steel

Weight 21.5ton
