Products > Veneer Rotary Lathe > CNC 90m/min Veneer Cutting Line > Combined Veneer Rotary Lathe

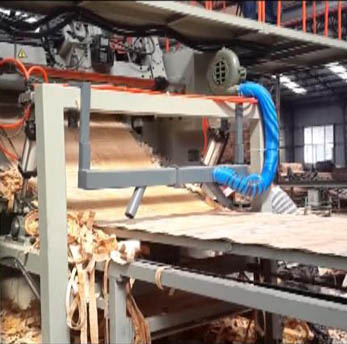

Product name : Combined Veneer Rotary Lathe

Item : BQK1913/4,BQK1920/4

Enlarge Image

Back

Details:

Shandong Baishengyuan cominbed rotary lathe BQK1913/4; BQK1920/4; BQK1926/4 adopt CNC system control,rotary cutting parameters be friendly easy change,peeling blade angle can free adjust,peeing speed in linear 90m/min running,powered roller bar,log charger&centering system as one whole part of above machines,etc.Spindle lathe and spindless lathe in one machine.It is more and more welcome by market.

Rotary cutting veneer speed 90m/min	Double roller driven power 7.5KW
Peeling log length 1000~1350mm (BQK1920/4 for 2100mm length)	Knife gap by servo motor power 3.7KW
Spindle dia.95mm	Swig charger by servo motor power 5.5KW
Max peeling log dia.400mm	Log centering by servo motor power 3KW
Mini peelng log dia. 40mm	Clamp arm by servo motor 3KW
Veneer peeling thickness 0.35-3mm	Log feed power one 1.5KW
Spindle rotation speed 0—200rpm	Log feed power two 4KW
Spindle motor power 15KW	Hydraulic unit power 4KW
Single roller power 15KW	Total motor power 77.6KW
Double roller power 8KW	Weight 22T
Knife carriage driven by servo motor 7.5KW	Dimension size 12580×5760×3350mm

Working video reference link
https://www.facebook.com/photo.php?v=10201003191832522&l=2612008730540128737
