Products > Veneer Rotary Lathe > Spindless Rotary Lathe > 4ft,6ft, 8ft Spindless Rotary Lathe

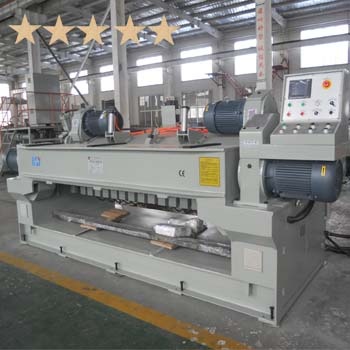

Product name : 4ft,6ft, 8ft Spindless Rotary Lathe
Item : SL2600/3
 Enlarge Image                   Back
←[Previous Product]


Details:

8FT Models

SL2600/3

SL2600/4

BQK1827F1

BQK1827F

Max peeling log length

2600

2600

2600

2600mm

Max peeling log dia.

Φ 360

Φ 360

Φ360

Φ360mm

Recommendation index


+++++




++++


+++


++

Minimum final log core

 35-40

35-40

35-40

35-40mm

Peeling veneer thickness

0.4 - 3.2

0.4 - 3.2

0.5 - 3.2

0.5 - 3.2mm

Veneer out-feed/peeling speed

42/(30-80)

42/(30-80)

42/(30-80)

42/(30-80)m/min

Motor power installed

29.2

28.1

24.1

25.2kw

Dimension size

4.65×1.95×1.7

4.65×1.90×1.6

4.6×1.8×1.56

4.6×1.85×1.7m

Net weight

9500

8500

7000

8500kg

Note

All above machines have Mitsubishi CNC system as optional,correspond double servo motors.

All driven rollers Chrome hardness processed.

History model BQK1827 has been updated by BQK1827F1.

Rollers driven transmission system is cast gear box except BQK1827F by chain.

Europe CE certification available.

Engineers oversea service available.



Spindless Rotary Lathe Models Available as below, just feeling free contact us  info@baishengyuan.com.cn
SLK2600/5F 680000
SLK2000/5F 650000
SLK1350/5F 600000
SL3300/5B 620000
SL2600/5B 556000
SL2000/5B 530000
SL1350/5B 495000
SL2600/3B 520000
SL2000/3B 490000
SL1350/3B 460000

SPINDLESS PEELER ROTARY CUTTING VENEER SPEED 30-80M/MIN;
