Reference machines working video in customer https://www.facebook.com/photo.php?v=10201003191832522&l=2612008730540128737

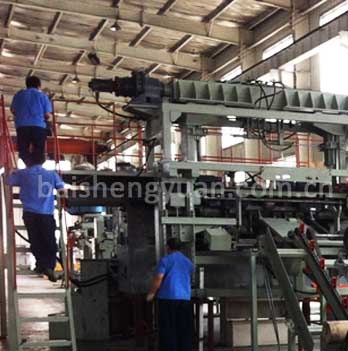

Spindle and spindless combined rotary lathe,using CNC technology to automatic control lathe's cutting processing data, automatic adjust the tool's rear angle, rotary cutting with linear constant speed, the tool cartriage feed and tool apeture can automatically adjust during movement of machine's servo motors, cutting process smoothly and processing quality stability.
|
Veneer cutting speed 90 M/MIN
|
Double-roll feed servo motor 7.5KW
|
|
cutting log length 1000~1350mm
(2100MM OPTIONAL)
|
Tool aperture servo motor 3.7KW
|
|
chuck diameter 95mm
|
Clamping rotation servo motor 5.5KW
|
|
Max. cutting diameter 400mm
|
Centering motor 3KW
|
|
cutting diameter 40mm
|
Clamping travel servo motor 3KW
|
|
Cutting thickness of veneer 0.35-3mm
|
Feed-in motor 1.5KW
|
|
spindle speed 0—200rpm
|
Conveyer motor 4KW
|
|
chuck motor 15KW
|
Hydraulic station motor 4KW
|
|
single-roll motor 15KW
|
Total power 77.6KW
|
|
Double-roll motor 8KW
|
weight 22T
|
|
Tool cartridge feed servo motor 7.5KW
|
Overall sizes 12580×5760×3350(mm)
|

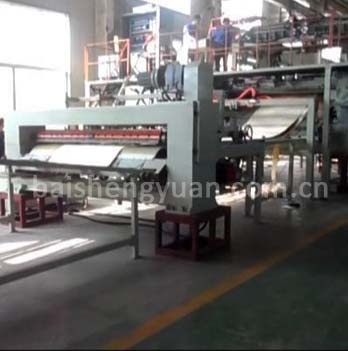

CNC 90m/min Veneer Cutting Line
Veneer Clipper
