Product name : 8ft Hydraulic Rotary Lathe
Item : BQ(K)1226/8F1
 Enlarge Image                   Back
←[Previous Product]


Details:

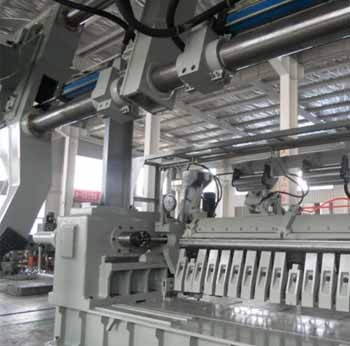

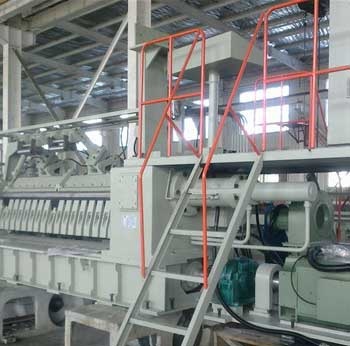

8ft Hydraulic Single Spindle Rotary Lathe  BQ(K)1226/8F1
Peeling log diameter 170-800
Peeling log length 2150-2700
Veneer thickness 0.3-4.2
Chuck diameter 130
Spindle rotation speed  0-200rpm
Knife carriage speed 1.8m/min
Main motor power 75kw (AC or DC motor)
Rapid feed motor power 4kw
Hydraulic station motor power 7.5kw
Grinding angle of appropriate tool cartridge 18o-22o
General motor power 89.5
Overall dimension 8250×2855×1554mm
Net weight 16500kg

--The main motor AC motor changes to DC motor;

---CNC system as optional, Beike CNC System or Mitsubishi CNC System;

----8ft Log Charger¢ering machine BDS1308/27A.

WORKING LOG LENGTH SIZES 4FT,6FT,8FT OPTIONAL.
