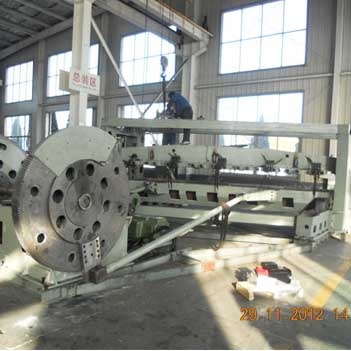

Product name : Horizontal Veneer Slicer
Item : BB1130A
 Enlarge Image                   Back
←[Previous Product]


Details:
Service:
----Shandong Baishengyuan horizontal veneer slicer,working length have
4200mm(13.7ft), 3200mm(10.5ft), 3000mm(10ft) and 2700mm(8.9ft),maximum slicing width 1300mm(4.3ft);
---Slicing veneer sheet 2500x1300mm,be popular in recent market,for technology timber slicing.
---
Shandong Baishengyuan machines installation and traing available in oversea project.

Horizontal Slicer Models



BBK1142(cnc)



BB1132(A);
BBK1132(cnc)



BB1130A

BB1127F1

Max slicing timber sizes (mm)

4250×750×720;

2560*1300*750

3200×600×720

3000×650×750;
(2600×800×750
)

2700×650×400

Slicing veneer thickness

0.1-3.6mm

0.20-2.2mm

0.10-2.2mm

0.14-2.2mm

Slicing frequency (t/min)

10-36

10-35

13-25

13-33

Main motor power (kw)

45

30

30

22

Lift motor power

4kw/5.5hp

3kw/4hp

4kw

2.2kw/3hp

Clamping motor power

7.5kw/10hp

3/4hp

2.2kw/3hp

2.2kw/3hp

Dimension(mm)

9740×6300×2845

9200×4710×3000

8256×4094×2960

7785×3870×2440


Closer to Shandong Baishengyuan Slicer in video
https://www.facebook.com/photo.php?v=175724049302010&l=5786646765895653708

---Quality system:Inernatioanl ISO9001
----Since the date of established since 1956, we have been built woodworking relationships over forty countries.
