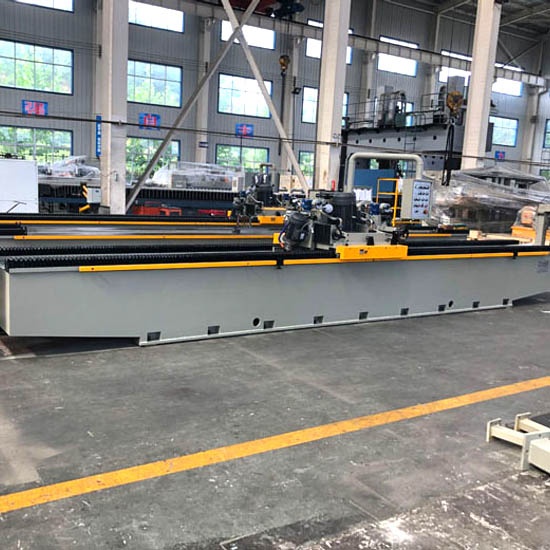

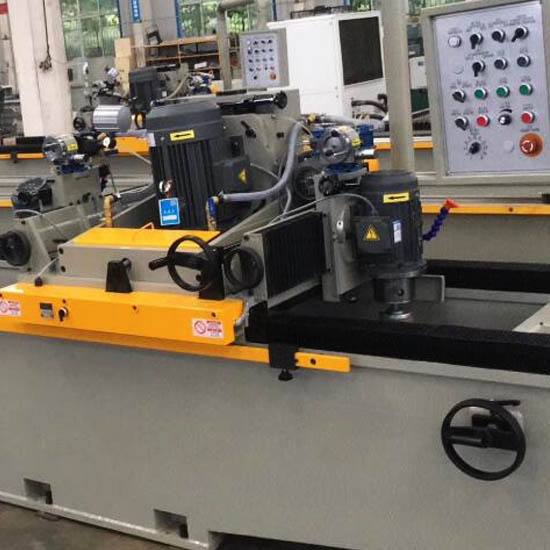

Three Head Precision Knife Grinder Machine YM3500

Maximum grinding length 3500mm

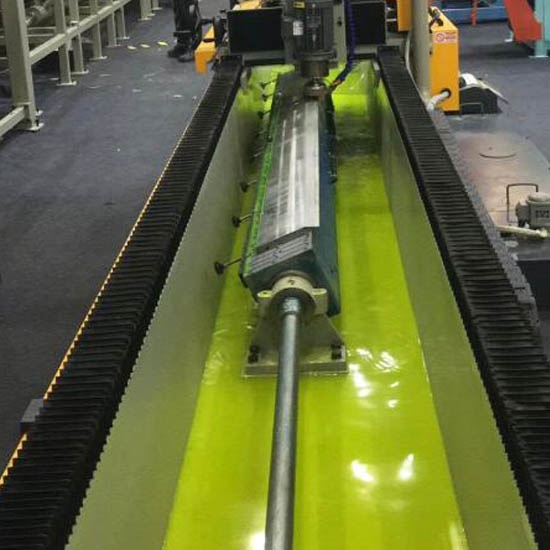

Electromagnetic chuck size  200×200×1760mm（width× height×length）

Electromagnetic chuck angle 0°～90°

Main grinding head size ￠255×￠195×130，cylindric granularity 46#

Main grinding head work motor 7.5kW

Main grinding head lifting motor 0.75kW

Main grinding head hand wheel lifting feeding distance 0.26mm/r

Main grinding head vertical distance 0～240mm

Main grinding head rotary angle ±8°

Main grinding head grinding feeding way  single knife feeding,double knife feeding

Bottom oil grinding head size￠125×￠100×30，cup type， granularity 800#

Bottom oil grinding head work motor Y90L-2-B35，2.2kW

Bottom oil grinding head vertical coarse feeding distance 0.66mm/r

Bottom oil grinding head vertical  precise  feeding distance 0.022mm/r

Bottom oil grinding head angle 0～30°

Upper oil grinding head ￠100×￠75×30，

Upper oil grinding head work motor 2.2kW

Upper oil grinding head coarse feeding distance 0.66mm/r

Upper oil grinding head precise feeding distance 0.022mm/r

Upper oil grinding head angle 0～10°

Plate moving motor 1.5kW

Plate moving speed 0 ～ 12.5m/min ， frequency conversion（0～50Hz）

Cooling water pump motor power 120W

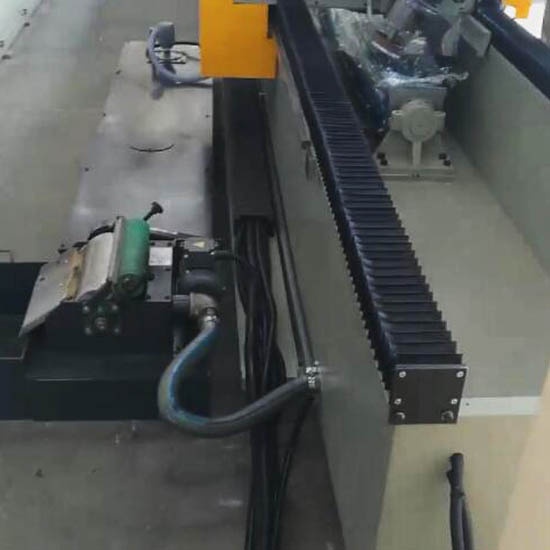

Permanent magnet separator power  75W

Lubrication oil pump power 20W，220V

Total power 14.4kW

Machine size 8040×1960×1900mm（length×width×height）
